Direct answer
The US Breville Oracle Touch BES990 uses a professional-style 58 mm stainless steel portafilter and Breville describes its supplied system around a 22 g dose. A replacement still needs explicit BES990 or BES990XL coverage: it must rotate into the machine's grind outlet for automatic grind, dose and tamp, then lock into the group head. Current US Breville pages for the SP0001817 assembly and BES058NP naked portafilter do not name BES990 in their displayed compatibility lists, so their 58 mm label alone is not a current US model-level fit confirmation.
Compatibility ledger
MODEL-SPECIFIC| Item or model | Fits | Verdict | Research note |
|---|---|---|---|
| Factory 58 mm full stainless steel portafilter | Oracle Touch BES990 / listed US color variants | Fits | The current US BES990 product page specifies the supplied professional 58 mm stainless steel portafilter and a 22 g dose. |
| Breville BES058NP 58 mm Naked Portafilter | BES990 appears in Breville Canada's compatibility statement, but not on the current US page | Verify model | For a US purchase, confirm the exact current SKU with Breville instead of transferring a Canadian compatibility statement or relying on diameter alone. |
| Breville Portafilter Assembly 58mm — SP0001817 | The current US Works With list names BES985, BES995, BES920 and BEP920 | Verify model | BES990 is omitted from the displayed US model list. That omission is not proof of physical non-fit, but it is not enough evidence for a guaranteed replacement claim. |
| Generic third-party 58 mm portafilter | Unknown until the listing explicitly names BES990 or BES990XL | Verify model | Nominal diameter does not establish lug geometry, locking depth, basket fit or clearance in the automatic grind-and-tamp outlet. |
| Breville 50 mm or 54 mm portafilter family | Other Breville espresso-machine families, not the BES990 58 mm system | Does not fit | Those nominal sizes do not match the official 58 mm BES990 specification. |
Start with BES990, not only the Oracle name
Breville has used the Oracle name for several machines, including the Oracle Touch BES990, the earlier Oracle BES980, the Oracle Jet BES985 and the Oracle Dual Boiler BES995. This guide is limited to the US Oracle Touch BES990 family. Copy the full model and suffix from the machine label before ordering; a listing that says only ‘for Breville Oracle’ leaves the exact interface unresolved.
The official BES990 system is 58 mm and 22 g
Breville's current US BES990 page describes a professional 58 mm stainless steel portafilter holding a 22 g dose, and its included-accessories list names a 58 mm full stainless steel portafilter with one-cup and two-cup single-wall baskets. These facts establish the supplied machine system. They do not make 22 g a universal capacity for every aftermarket basket sold as 58 mm.

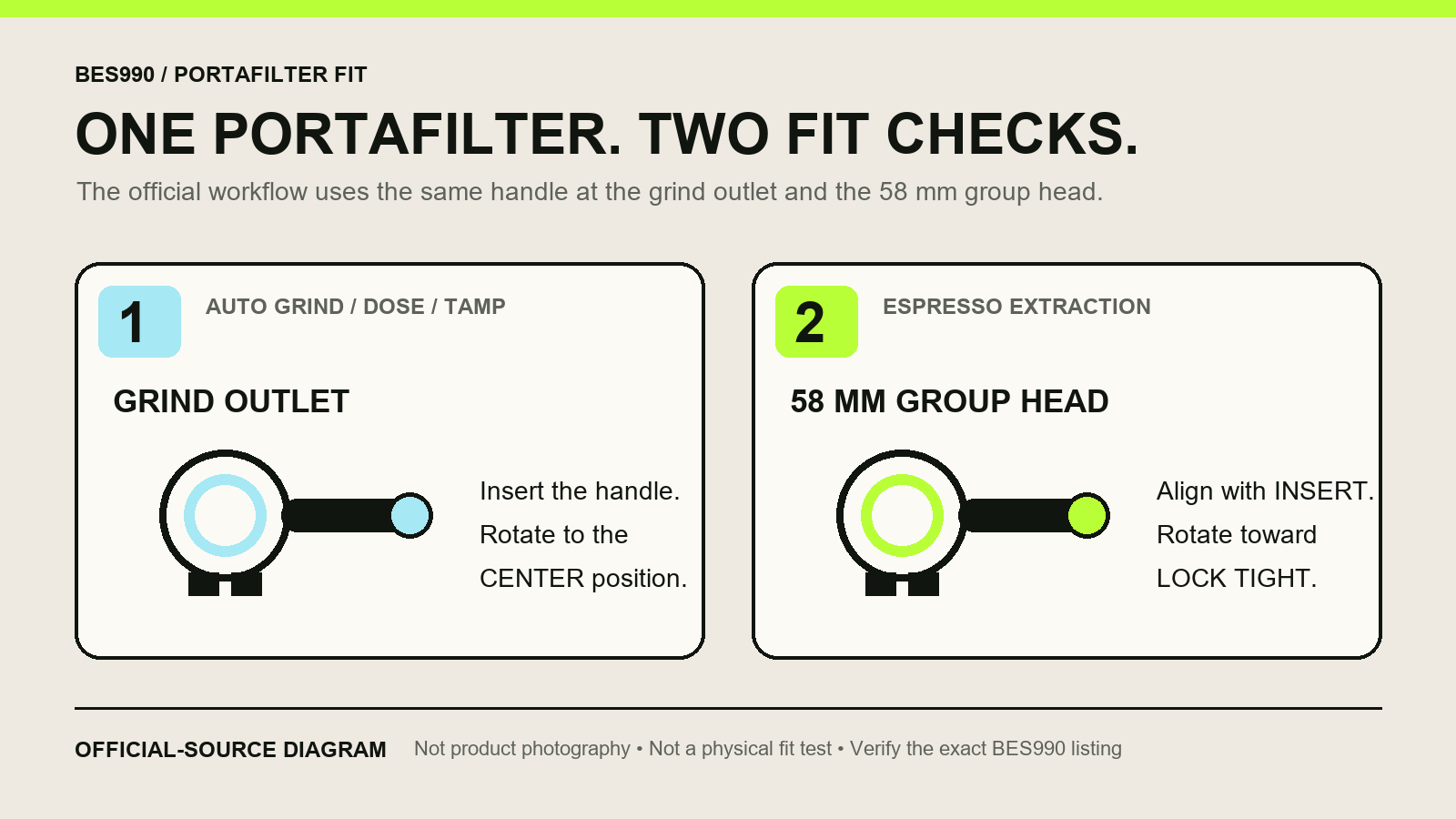

A replacement has two fit checks on this machine
The US instruction manual first tells the user to insert the portafilter into the grind outlet and rotate it to the center position for automatic grind, dose and tamp. For extraction, it separately instructs the user to align the handle with INSERT at the group head and rotate toward LOCK TIGHT until resistance is felt. A replacement that fits one location but cannot follow the other official movement has not satisfied the complete BES990 workflow.
Treat the current US parts-page omissions as unresolved
Breville's current US SP0001817 Portafilter Assembly 58mm page displays BES985, BES995, BES920 and BEP920 in its Works With list, not BES990. The current US BES058NP page describes compatibility with BES980XL, BES920XL and BES900XL and likewise omits BES990. Breville Canada's BES058NP page does explicitly name BES990, which shows why region and current SKU matter. For a US order, confirm the exact accessory with Breville rather than converting a cross-region record into a guarantee.
If the original portafilter leaks or loosens
The BES990 manual's troubleshooting table says to rotate the handle to the right until it is past center and securely locked, remove coffee from the basket rim, and dry the basket rim and the underside of the portafilter lugs. Those are the manufacturer's first checks for coffee escaping around the edge or a handle coming loose during extraction. If the correct original assembly still cannot lock normally, stop using the machine and contact Breville support rather than forcing it or assuming an unverified replacement will solve the cause.
Evidence boundary
This guide compares current Breville US product and accessory pages, the official US BES990 instruction manual, and one clearly labeled Breville Canada compatibility record. It is not a hands-on fit test, does not certify third-party 58 mm parts, and does not report current price, stock, ratings or user experience. Compatibility lists can change, so recheck the exact listing at the time of purchase.
