Direct answer
The Breville Dual Boiler BES920 uses a 58 mm full stainless steel portafilter and a heated 58 mm group head. Use the 58 mm accessory family, but do not treat diameter alone as proof that an unlisted third-party portafilter will lock in correctly; prefer a current listing that names BES920 or BES920XL.
Compatibility ledger
MODEL-SPECIFIC| Item or model | Fits | Verdict | Research note |
|---|---|---|---|
| Factory full stainless steel portafilter | BES920 / BES920XL Dual Boiler | Fits | Breville's US product page and instruction book both specify 58 mm. |
| Breville BES058 58 mm Naked Portafilter | BES920XL, BES900XL and BES980XL | Fits | The official US accessory page explicitly lists those three models. |
| Current Breville 58 mm Naked Portafilter | Breville's 58 mm espresso-machine family | Verify model | The current page makes a family-level claim rather than listing every BES model. |
| Breville 54 mm portafilter or tamping accessory | 54 mm Breville machines, not BES920 | Does not fit | Breville maintains separate 54 mm and 58 mm accessory families. |
| Generic third-party 58 mm portafilter | Unknown until BES920 / BES920XL is named | Verify model | Nominal diameter does not establish lug geometry, locking depth or handle clearance. |
Match BES920 or BES920XL on the label
Breville's current US product page uses BES920, while the US instruction book and model-specific accessory page use BES920XL. Those records describe the same Dual Boiler model family for this fit question. Copy the complete model from your machine label before buying a replacement.

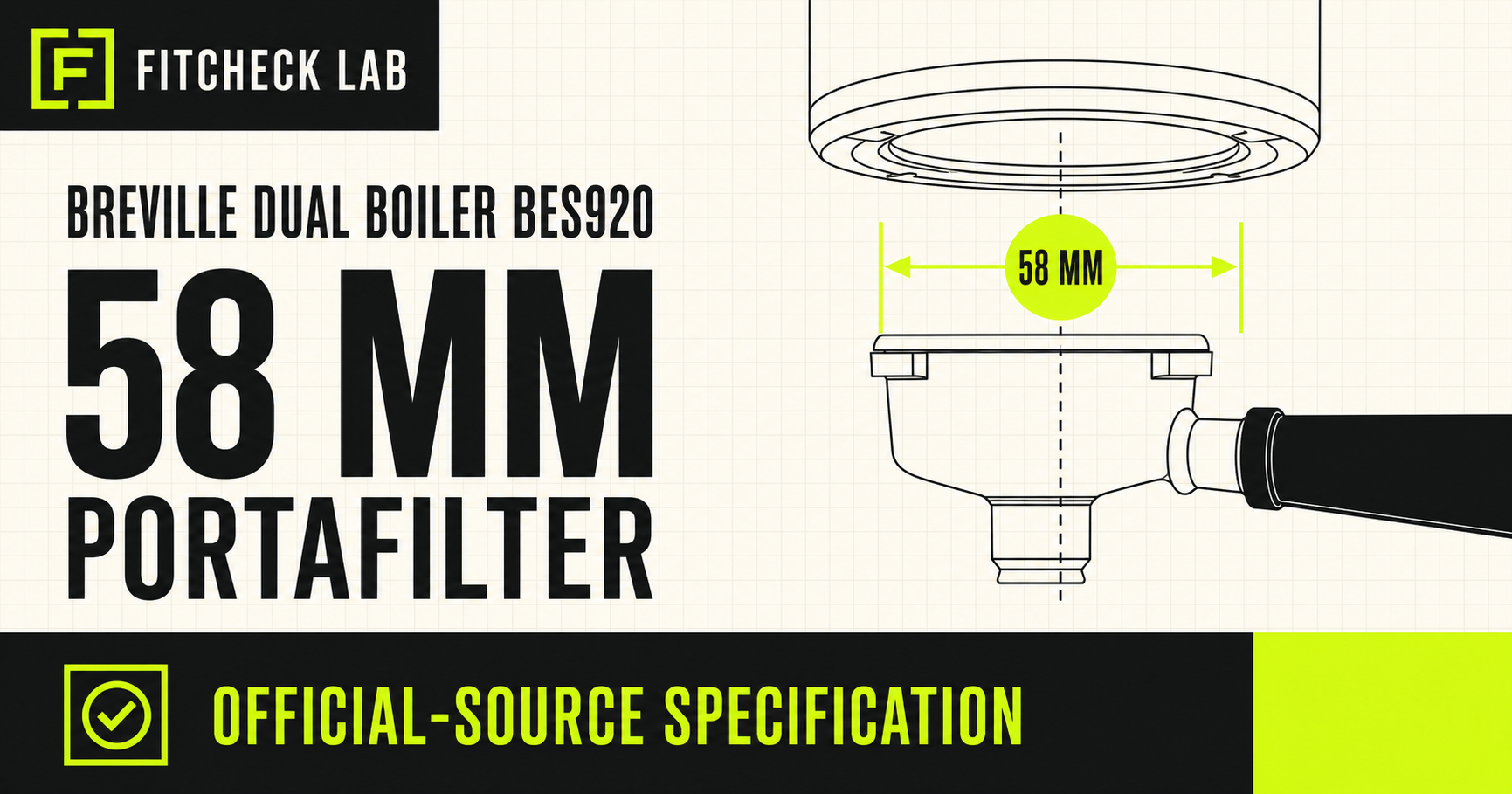

The group head and portafilter are both 58 mm
The official instruction book identifies a heated 58 mm group head and a 58 mm full stainless steel portafilter. The product page also lists a commercial-grade 58 mm portafilter and includes 58 mm single- and dual-wall filter baskets plus a 58 mm Razor dosing tool.
Use model-specific evidence for a replacement handle
Breville's BES058 naked portafilter page is the strongest replacement-fit record because it explicitly names BES920XL. A generic marketplace title that says only 58 mm gives less evidence: Breville's official specification does not certify another maker's lug shape or locking position.
Basket size and dose are separate checks
Breville describes the BES920 system around a 58 mm portafilter and a 22 g dose, but a replacement handle may be sold with a different basket or no basket. Confirm the included basket type and intended dose separately rather than transferring the machine's full accessory bundle to every listing.
Evidence boundary
This page records current US manufacturer specifications and compatibility statements. It is not hands-on testing, and it does not promise that every unlisted 58 mm portafilter, basket, tamper or funnel will fit the BES920.
