Soft is not the same as unfrozen
KSMICM produces soft-consistency ice cream; the manual calls for a separate freezer stage for a firmer result. If the batch stays liquid, check preparation and operation before assuming the bowl has failed. This symptom alone does not identify a replacement part.
Compatibility ledger
MODEL-SPECIFIC| Item or model | Fits | Verdict | Research note |
|---|---|---|---|
| A replacement freeze bowl | Exact attachment model must be established | Verify model | A disappointing batch is not evidence that this component needs replacement. Ask KitchenAid to confirm the required part before ordering. |
| A replacement dasher or drive assembly | Selected component and attachment generation | Verify model | Do not buy a drive component solely because the mixture did not freeze. We have not verified an interchangeable aftermarket part. |
| Complete KSMICM attachment set | Mixer compatibility still needs checking | Verify model | A complete new set is not a guaranteed solution. Use the linked model-exclusion guide if replacement is actually necessary. |
Which outcome are you seeing?
Describe the result before naming a fault: did it thicken into soft ice cream, remain pourable, or fail to churn? These observations lead to different questions. The manual recommends transferring the soft result to a shallow airtight container for 2–4 hours in the freezer. Do not store finished ice cream in the attachment's freeze bowl. A soft batch at the end of churning is therefore not, by itself, proof of defective hardware.
Resolve the 16-hour versus 24-hour preparation advice
Manual W11421743 Rev B specifies at least 16 hours at the freezer's coldest setting; KitchenAid's current US KSMICM product page says to allow 24 hours. The marketing claim of under 30 minutes applies after bowl preparation, not from an unfrozen start. Allowing a full day is a practical planning choice, not our guarantee that a particular freezer or bowl is ready. Follow the instructions supplied with your exact product.
Check the documented starting conditions
Use the frozen bowl immediately after removal. The manual calls for fully refrigerated batter, no more than 46 oz (1.4 L) initially, and STIR speed. Start the assembled mixer before pouring in the batter; otherwise it can freeze prematurely and lock the dasher. Increasing speed is not the documented remedy. Turn off and unplug before assembly or disassembly, and follow the full manual's safety and operating instructions.
Keep a short batch record, not a shopping list
Write down the attachment identifier, mixer model, bowl-freezing duration, recipe source, measured batter amount, speed and what happened. Separate what you observed from what you suspect. This makes a support conversation more useful than saying only ‘it does not work.’ If preparation was incomplete, correct it for a later batch; do not keep adding ingredients, extending a failed attempt indefinitely or buying parts to test a guess.
When to ask for help instead of replacing parts
Stop if the assembly does not engage properly, something is visibly damaged, or operation seems abnormal. If the documented preparation and setup do not resolve the problem, send the batch record and model information to KitchenAid. We cannot diagnose a sealed bowl or certify its condition from the finished dessert. If support identifies a needed replacement, obtain the exact part identifier and compatibility statement before comparing offers.
What the Amazon search is for
The link below searches for the complete KSMICM attachment only. It is an optional comparison route after replacement has been justified, not a recommendation to buy a whole set for a liquid batch. Results may include other generations, regional models and third-party accessories. Check the selected item against official records. No purchase is needed if the documented preparation resolves the issue.
Scope and evidence

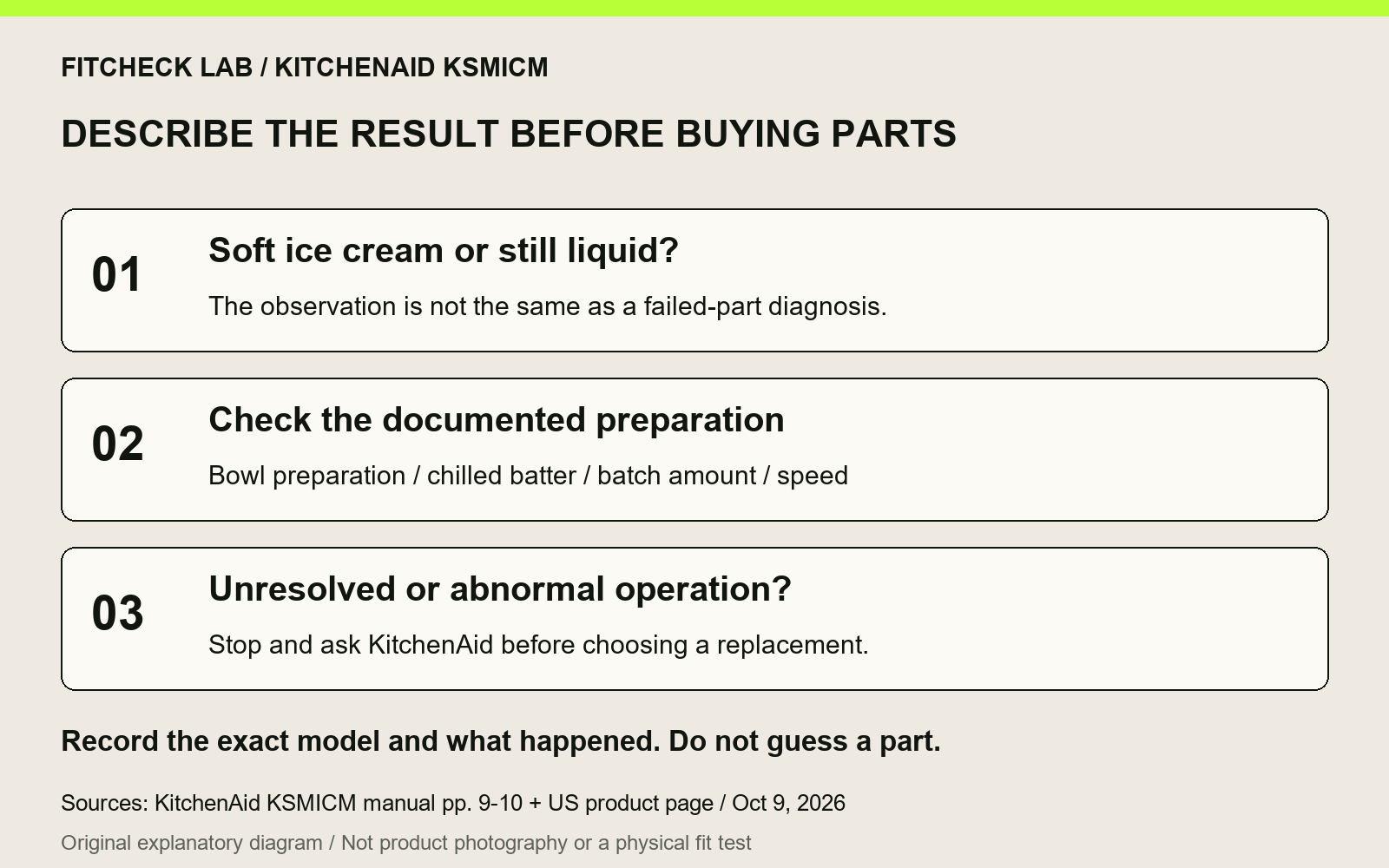

Checked October 9, 2026 against the official KSMICM manual and US product record. This is documentary research, not a hands-on test, recipe trial or individualized fault diagnosis. It does not cover every KitchenAid ice cream attachment or confirm old and new parts interchangeability. The image is an original decision aid, not a product photograph or a physical fit test.
