No steam is a symptom, not a part number
Breville's US BES870 troubleshooting table lists several possibilities for no steam: warm-up, an empty or unseated tank, descaling, a blocked wand, or the dial position. It does not establish that the steam wand assembly needs replacing. Start with the documented checks, not a speculative parts order.
Compatibility ledger
MODEL-SPECIFIC| Item or model | Fits | Verdict | Research note |
|---|---|---|---|
| SP0100227 — Cleaning Steam Wand | BES870 in Breville's US Works With list | Fits | A listed cleaning accessory is not evidence that your machine needs a replacement wand assembly. |
| A marketplace steam-wand replacement | Exact part and fault not established here | Verify model | Ask Breville to identify the required service part before buying on appearance alone. |
Check the simple conditions first
Use page 29 of the linked US manual: allow heating to finish, fill and fully seat the water tank, and confirm the dial is fully at STEAM. A flashing STEAM/HOT WATER light indicates heating; the manual says readiness follows when flashing stops. Keep hands clear of hot water and steam. Do not interpret every initial discharge of water as a failed component.
If the tip is blocked
Before cleaning, return the dial to STANDBY, switch off, unplug and let the machine cool. Page 25 describes using the supplied cleaning-tool pin; persistent blockage calls for removing the tip with that tool's spanner, hot-water soaking, clearing and refitting it. Follow the complete manual rather than improvising with force. The manual separately identifies descaling as another no-steam check.
What the replacement cleaning-tool record actually proves
Breville's US SP0100227 page is titled Cleaning Steam Wand and names BES870 under Works With. This is a useful record if you are identifying a missing cleaning accessory. It is not a diagnosis and does not identify a complete replacement steam system. The phrase ‘steam wand’ in a search result can describe different items; inspect the component's purpose and package contents, not just the title.
When the checks do not resolve the symptom

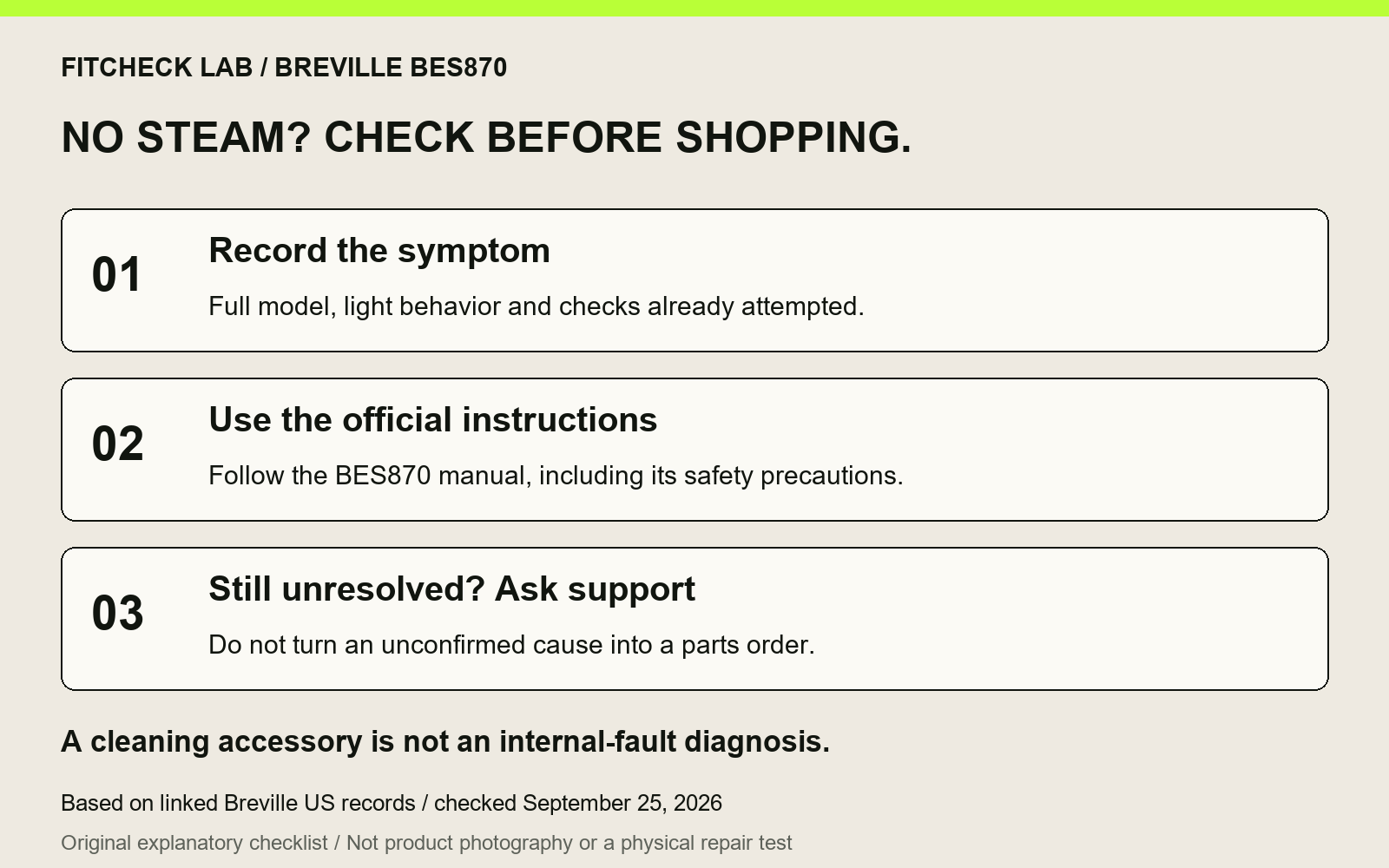

Stop short of opening the housing or ordering internal parts from an online guess. For maintenance beyond cleaning, Breville directs owners to Consumer Support. When contacting support, provide the complete model and batch details, describe the light and dial behavior, and list the checks already attempted. Separate observations from your suspected cause: ‘no steam after warm-up’ is more useful than declaring that the pump is broken without evidence.
How to use the shopping link
The search below is for a BES870 steam-wand cleaning tool, not a promised repair. Compare the chosen item's exact model statement with the official record and check whether it is a cleaning accessory, a tip or an assembly. We do not certify third-party equivalents. If you already have the correct cleaning tool, this article is not a recommendation to buy another one.
Scope and evidence
This guide covers the US Barista Express BES870, not other Breville or Sage models with similar names. Sources were checked September 25, 2026. This is documentary research, not a hands-on repair test, an internal-fault diagnosis or a guarantee that cleaning will restore steam. We do not reproduce a full service procedure, quote live prices or claim stock availability.
